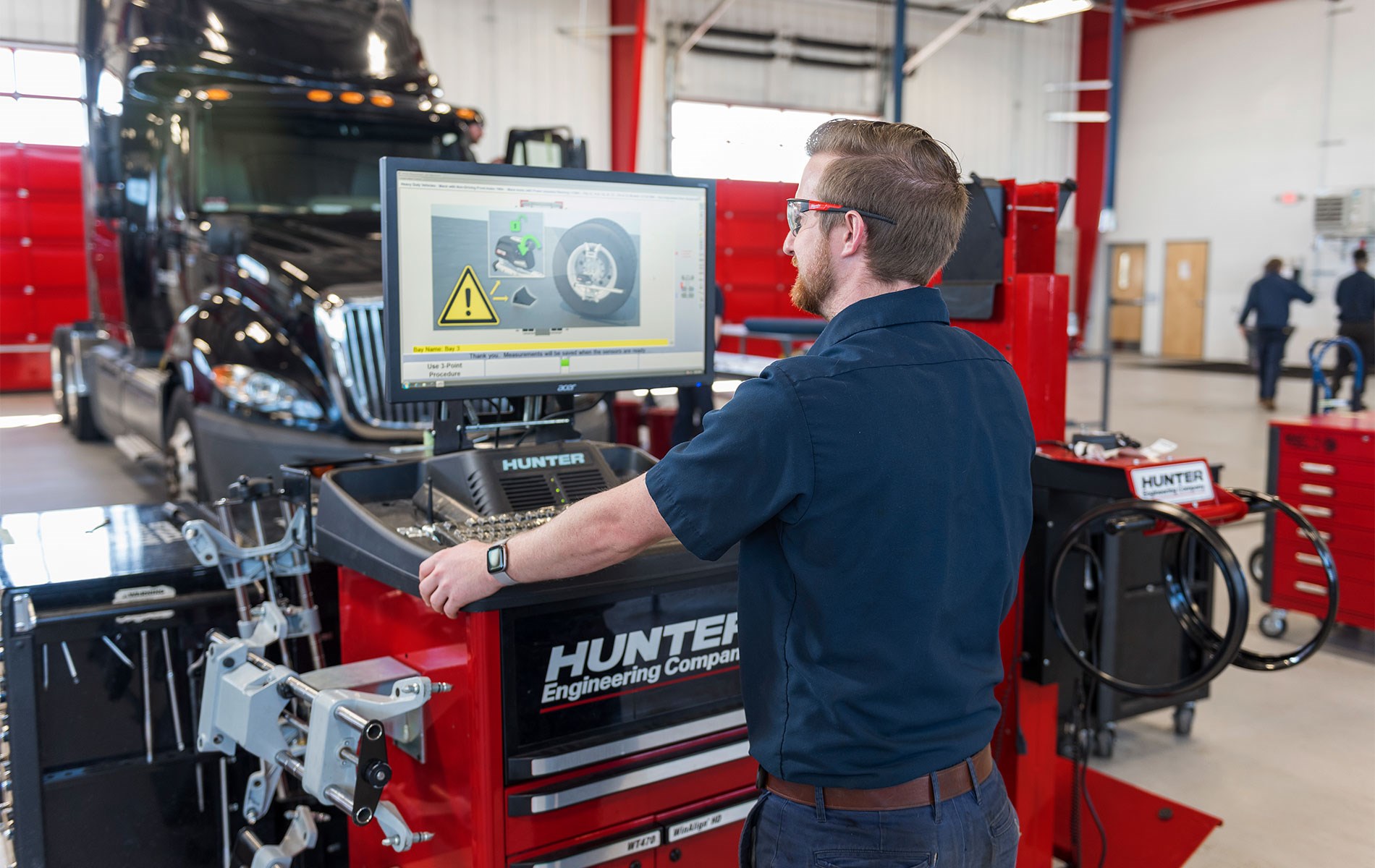

WinAlign® HD Alignment Machine

Perform fast and accurate multi-axle truck alignments

Quickly diagnose tire wear conditions

Alignment readings in just three minutes

Rolling compensation with no jacking required

Faster setup, faster results

3-axle alignment readings in 3 minutes

Minimal setup time

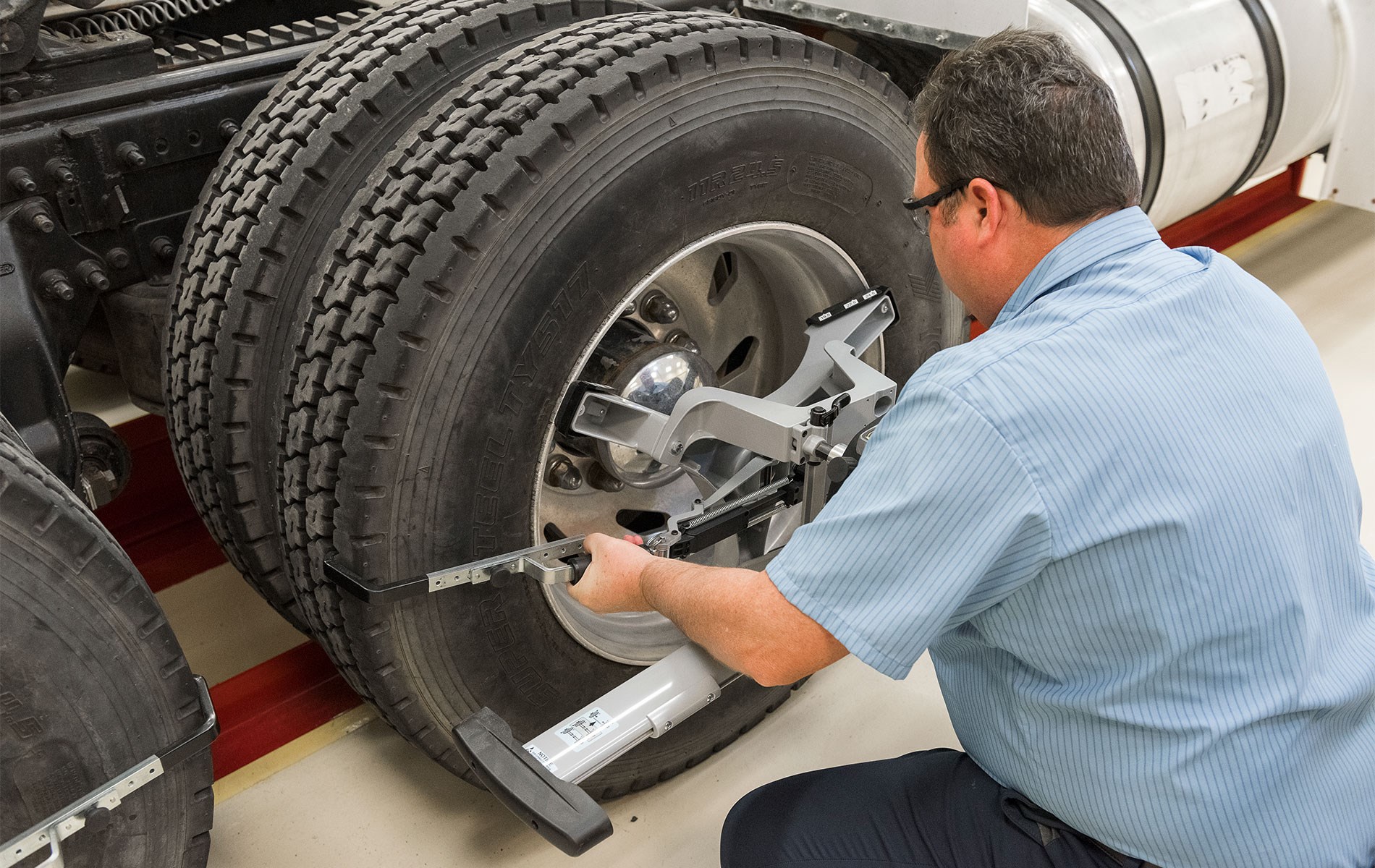

HD QuickGrip® Adaptors allow for fast installation and no metal-to metal contact.

The fastest procedure

Hunter can capture heavy-duty wheel alignment readings in three minutes.

Fast printouts

Easy-to-understand printouts help sell service.

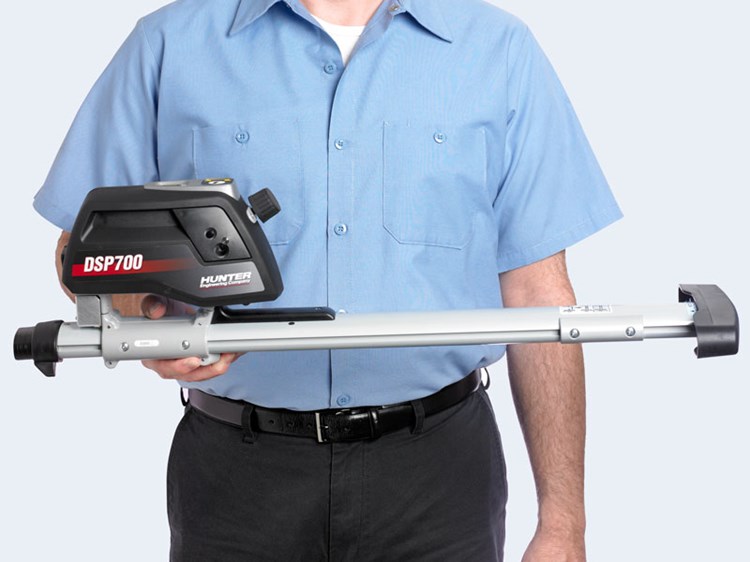

DSP760T Sensors

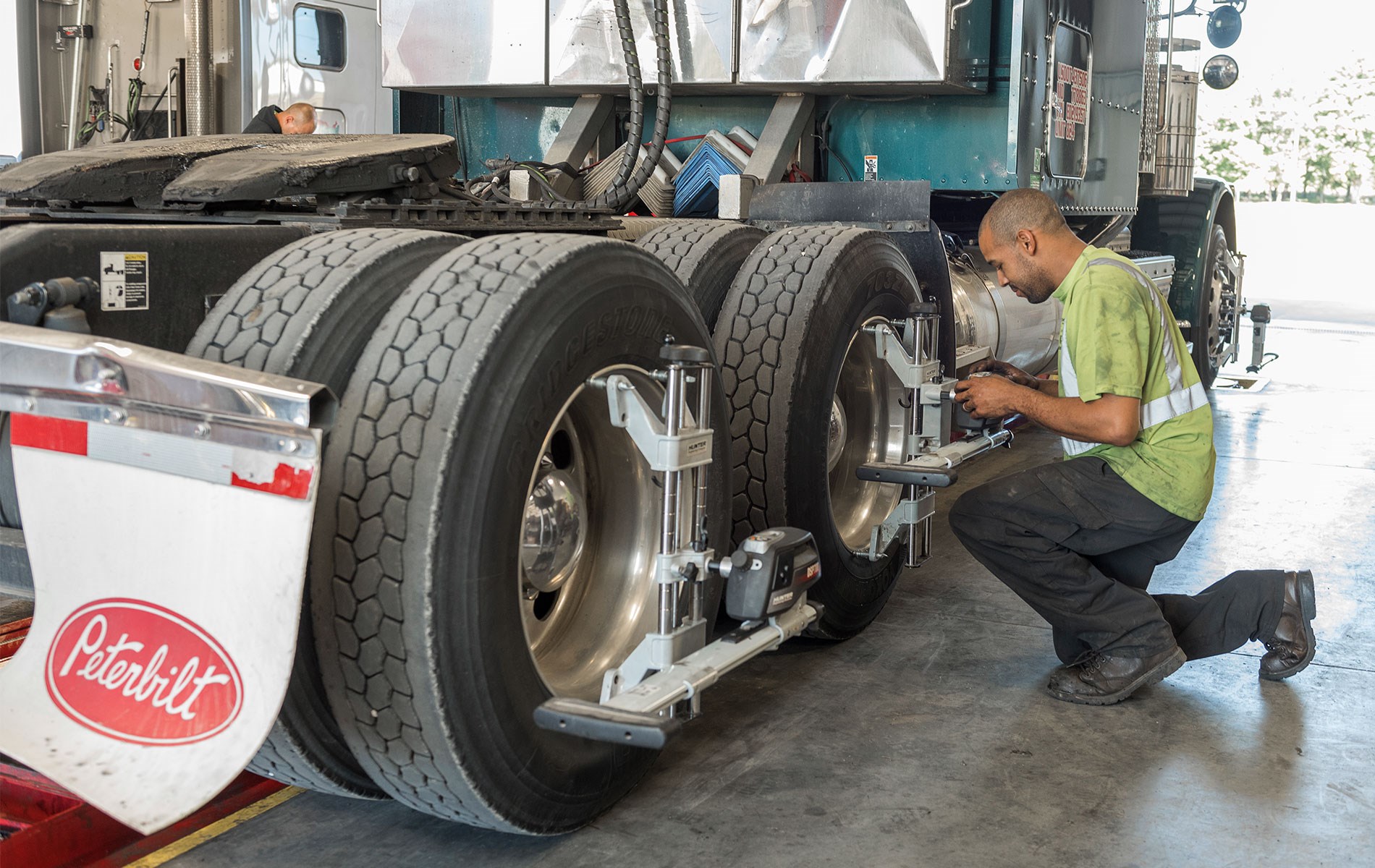

Hunter's DSP760T heavy-duty alignment sensors reduce setup time and provide accurate alignment readings. See all six sensors live to measure alignment angles and diagnose tire wear conditions. Shown with QuickGrip® adaptors

QuickGrip® adaptors

Rugged design

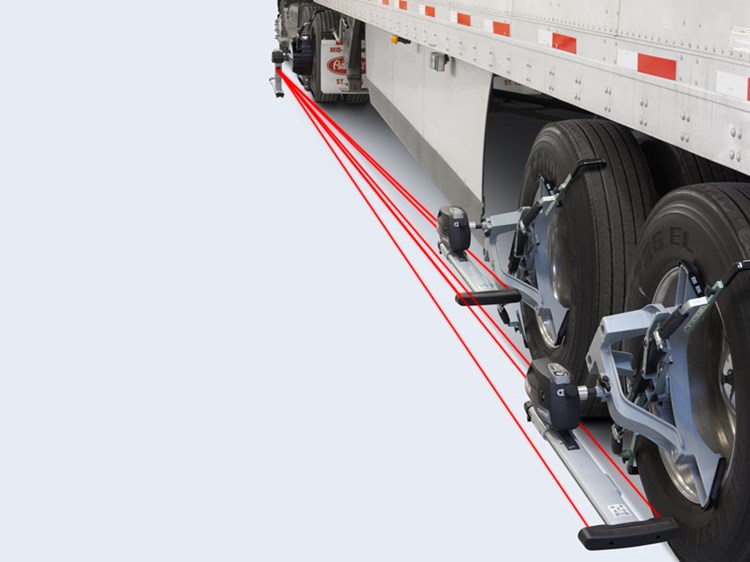

Trailer alignment

Self-Centering Adaptors

QuickGrip® adaptors

Rugged design

Trailer alignment

Self-Centering Adaptors

Make rolling compensation easy

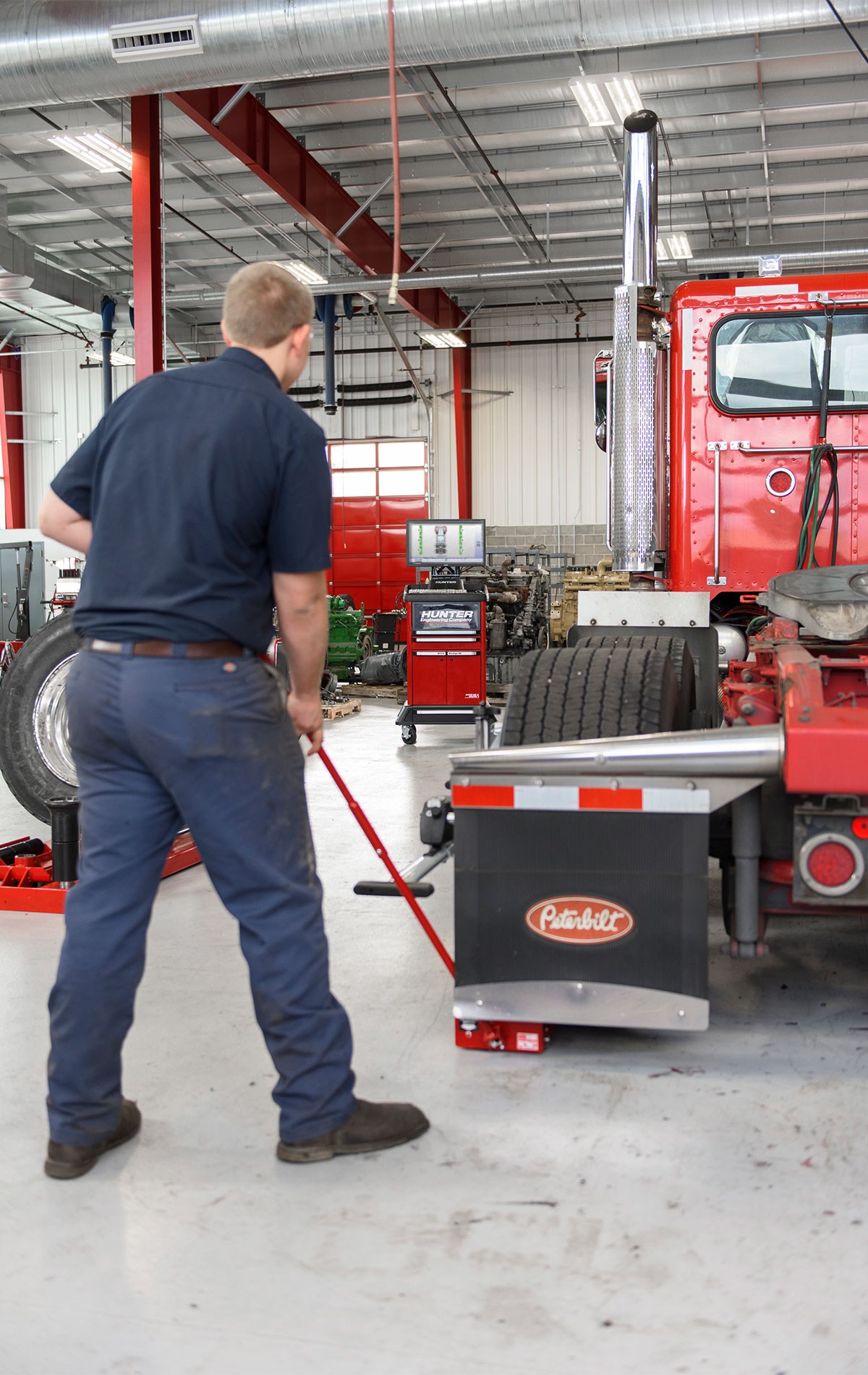

Hunter's truck pusher allows technicians to effortlessly move the truck from the rear axle for rolling compensation.

Standard on WT600, Patent pending

Skip steps and hassles that other systems require.

No cables

Cordless sensor operation with hot-swapable batteries keeps the work area free of tripping hazards.

No jacking

Short rolling compensation allows technicians to compensate all sensors at once.

No turnplate pins

Lock or unlock all PowerSlide® turnplates from the console.

Save valuable shop time

3:00 total

0 axles jacked to compensate

0 sensor movements

81 total walking steps

0 additional minutes required before adjustment

Make your shop time count. Check truck alignment angles in just 3 minutes.

Unmatched software

Patented technology maximizes productivity in your alignment bay

Vehicle-specific

Procedures guide your technicians with step-by-step instructions specific to the vehicle.

Patented power tools

Procedures designed so you can complete the work accurately the first time, every time.

Light-duty vehicles

Additional features included for servicing light-duty vehicles

Six Sensors_{Live See three axles live with all measurements at once. Reduce setup time through minimal sensor movement.}

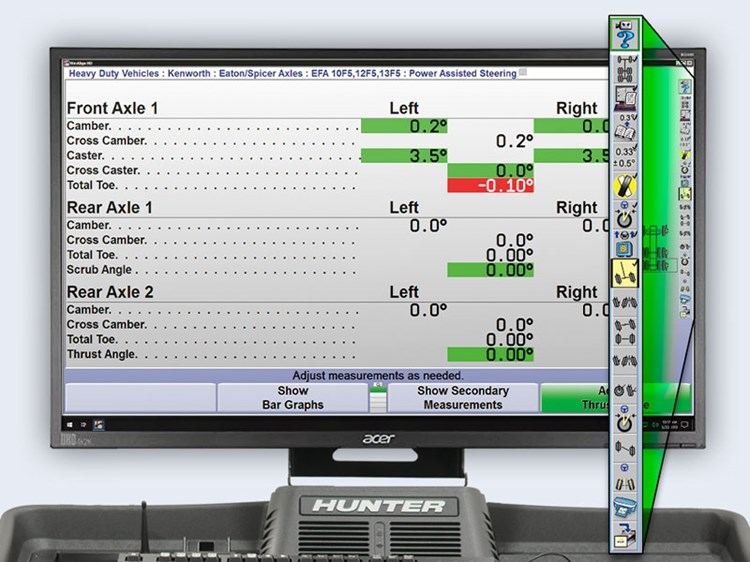

ExpressAlign® _{Perform every alignment with a streamlined procedure. ExpressAlign® analyzes each job and presents the optimal action sequence with the minimum steps required.}

60+ Axle _{Configurations Possible WinAlign® HD software supports more than 60 customized truck, trailer and bus alignment procedures as well as passenger car and light truck alignment.}

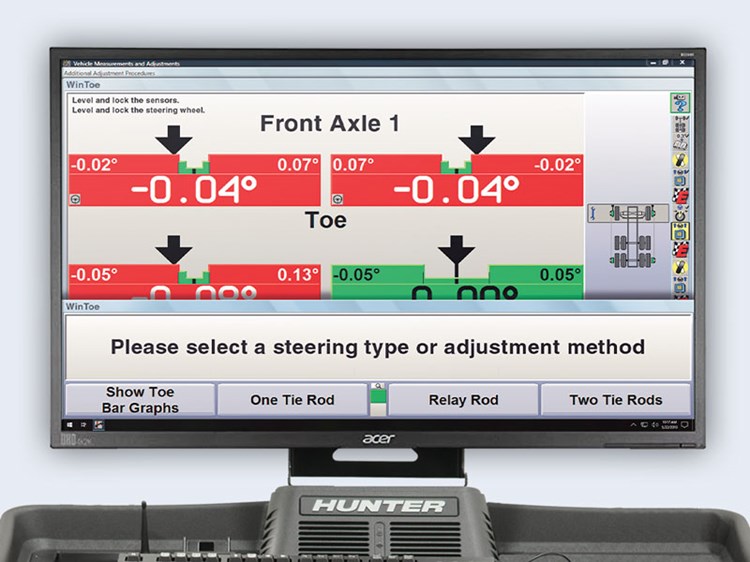

WinToe® _{Ensure a straight steering wheel every time without repeated adjustments or using a steering wheel holder. Works with all vehicles on the road today, from cars to Freightliners.}

Six Sensors_{Live See three axles live with all measurements at once. Reduce setup time through minimal sensor movement.}

ExpressAlign® _{Perform every alignment with a streamlined procedure. ExpressAlign® analyzes each job and presents the optimal action sequence with the minimum steps required.}

60+ Axle _{Configurations Possible WinAlign® HD software supports more than 60 customized truck, trailer and bus alignment procedures as well as passenger car and light truck alignment.}

WinToe® _{Ensure a straight steering wheel every time without repeated adjustments or using a steering wheel holder. Works with all vehicles on the road today, from cars to Freightliners.}

Rear Axle Adjustment_{Cut adjustment times in half for rear axle corrections. Graphics let you get it right on the first try. Patented}

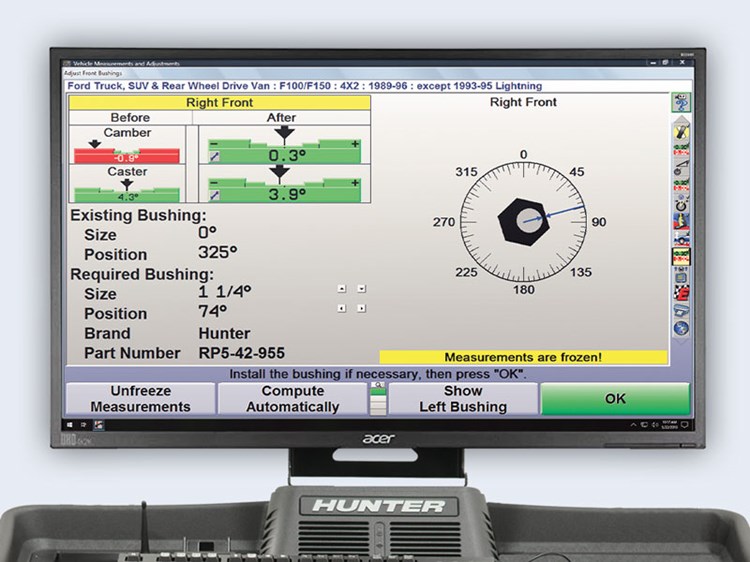

Automatic Bushing Calculator®_{Calculate the proper bushing size and position adjustment without wasting time with a zero bushing. Eases the process of servicing Ford F-150-450's. Patented}

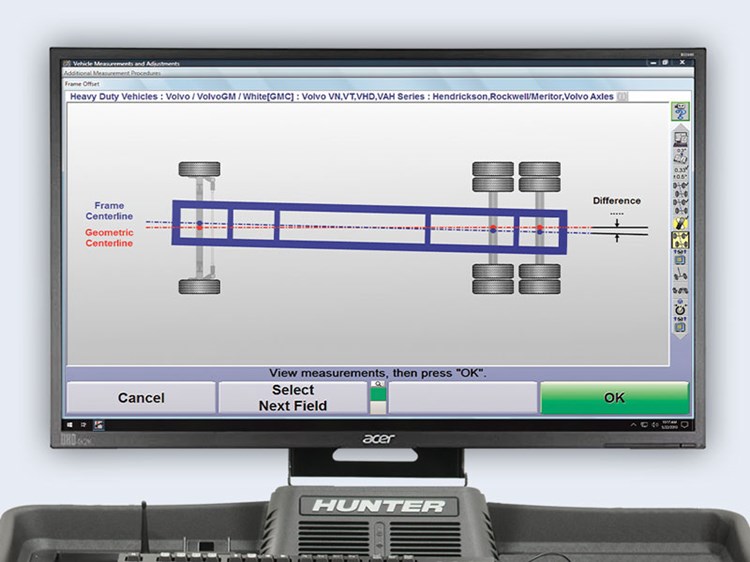

Frame Offset _{Angle Measure frame offset angle and calculate adjustments to frame centerline, if a frame reference alignment is needed.}

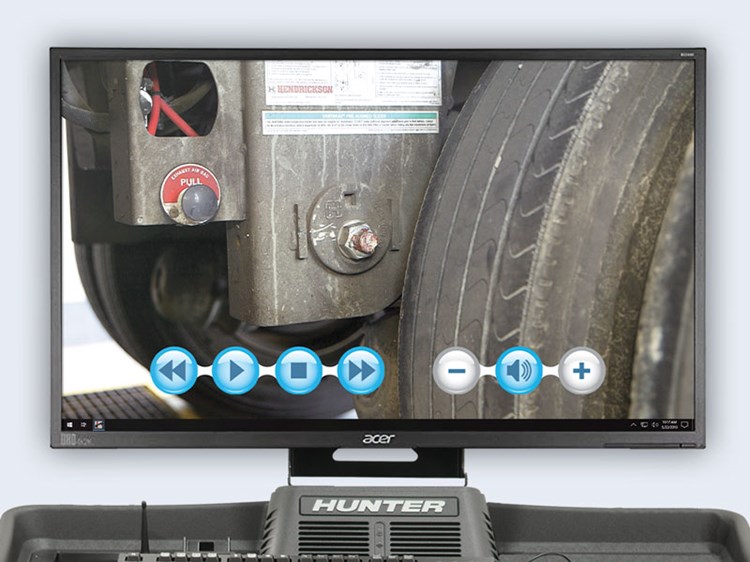

Adjustment Videos_{Strengthen technician competency and extend profit opportunities with helpful adjustment videos.}
